Butt weld fittings| Mô tả / Description - Butt weld Fittings - ASME B16.9 | |||
| Danh mục sản phẩm - Product portfolio | |||

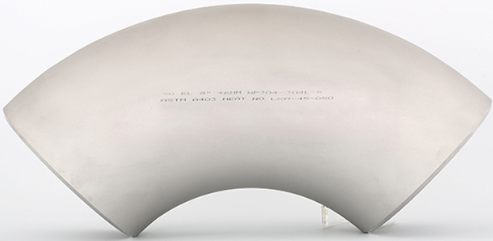

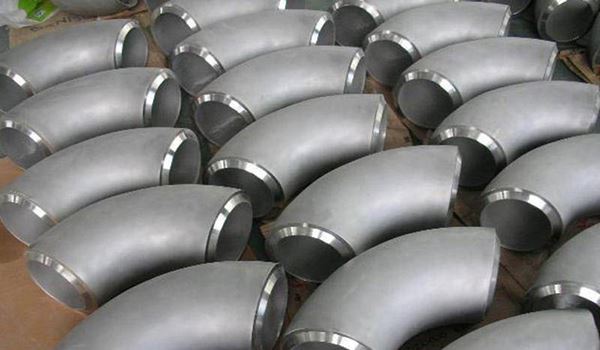

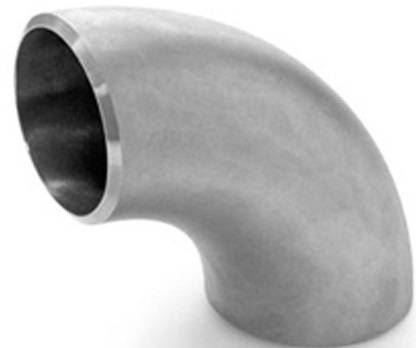

| Long radius Elbow 90 degrees | Short Radius Elbow 90 degrees | Long radius Elbow 45 degrees | Short Radius Elbow 45 degrees |
| Long radius Elbow 180 degrees | Short Radius Elbow 180 degrees | Straight Tee ( Equa Tee) | Reducing Tee |
| Concentric Reducer | Ecentric Reducer | Long radius Lap Joint Stub Ends - ASME B16.9 | Short Radius Lap Joint Stub Ends - MSS SP43 |
| End Cap | Reducing Elbow 90 degrees | Straight Cross ( Equa Crosses) | Reducing Crosses |
| Lateral Tee | Y Lateral Tee | ||
| Material: | |||
| WP-S : Made from seamless pipe | WP-W : Manufactured from welded pipe | ||
| WP-WX: Of welded construction. All welds must be 100% radiographed in accordance with Paragraph UW-51 of Section VIII, Division 1 of the ASME Boiler and Pressure Vessel Code. | WP-WU: Of welded construction. All welds must be 100% examined ultrasonically in accordance with Paragraph UW-51 of Section VIII, Division 1 of the ASME Boiler and Pressure Vessel Code. Note that this Class only applies to austenitic fittings made to | ||
| CR Fittings: are manufactured to the requirements of MSS SP43. These are light-weight fittings and do not require radiography. | WP Class W : Radiographic inspectionofthe weld is required. See | ||
| Class | Construction | Non-destructive Examination | |
| SMLS | Seamless | None | |
| W | Welded | Radiography or Ultrasonic | |
| WX | Welded | Radiography | |
| WU | Welded | Welded Ultrasonic | |
| Material : Butt weld Fittings - ASME B16.9 | |||
| Material: ASTM A403 SA403 | |||
| WP: Means Wrought Pipe | CR: Means Corrosion Resistant | UNS Designation | |
| ASTM A403 Grade WPXM-19 | ASTM A403 Grade CRXM-19 | S20910 | |
| ASTM A403 Grade WP304 | ASTM A403 Grade CR304 | S30400 | |
| ASTM A403 Grade WP304L | ASTM A403 Grade CR304L | S30403 | |
| ASTM A403 Grade WP304H | ASTM A403 Grade Grade CR304H | S30409 | |
| ASTM A403 Grade WP304N | ASTM A403 Grade CR304N | S3045 | |
| ASTM A403 Grade WP304LN | ASTM A403 Grade WP304LN | S30453 | |
| ASTM A403 Grade WP309 | ASTM A403 Grade CR309 | S30900 | |
| ASTM A403 Grade WP310S | ASTM A403 Grade CR310S | S31008 | |
| ASTM A403 Grade WPS31254 | ASTM A403 Grade CRS31254 | S31254 | |
| ASTM A403 Grade WP316 | ASTM A403 Grade CR316 | S31600 | |
| ASTM A403 Grade WP316L | ASTM A403 Grade CR316L | S31603 | |
| ASTM A403 Grade WP316H | ASTM A403 Grade CR316H | S31609 | |
| ASTM A403 Grade WP316N | ASTM A403 Grade CR316N | S31651 | |
| ASTM A403 Grade WP316LN | ASTM A403 Grade CR316LN | S31653 | |
| ASTM A403 Grade WP317 | ASTM A403 Grade CR317 | S31700 | |
| ASTM A403 Grade WP317L | ASTM A403 Grade CR317L | S31703 | |
| ASTM A403 Grade WPS31725 | ASTM A403 Grade CRS31725 | S31725 | |
| ASTM A403 Grade WP31726 | ASTM A403 Grade CR31726 | S31726 | |
| ASTM A403 Grade WP321 | ASTM A403 Grade CR321 | S32100 | |
| ASTM A403 Grade WP321H | ASTM A403 Grade CR321H | S32109 | |
| ASTM A403 Grade WPS33228 | ASTM A403 Grade CRS33228 | S33228 | |
| ASTM A403 Grade WPS34565 | ASTM A403 Grade CRS34565 | S34565 | |
| ASTM A403 Grade WP347 | ASTM A403 Grade CR347 | S34700 | |
| ASTM A403 Grade WP347H | ASTM A403 Grade CR347H | S34709 | |
| ASTM A403 Grade WP348 | ASTM A403 Grade CR348 | S34800 | |
| ASTM A403 Grade WP348H | ASTM A403 Grade CR348H | S34800 | |
| Material: ASMT A234 | |||
| ASTM A234 Grade WPB | ASTM A234 Grade WPC | ASTM A234 Grade WP1 | ASTM A234 Grade WP12 CL1 |
| ASTM A234 Grade WP12 CL2 | ASTM A234 Grade WP11 CL1 | ASTM A234 Grade WP11 CL2 | ASTM A234 Grade WP11 CL3 |
| ASTM A234 Grade WP22 CL11 | ASTM A234 Grade WP22 CL3 | ASTM A234 Grade WP5 CL1 | ASTM A234 Grade WP5 CL3 |
| ASTM A234 Grade WPP CL1 | ASTM A234 Grade WP9-CL3 | ASTM A234 Grade WPR | ASTM A234 Grade WP91 |
| ASTM A234 Grade WP911 | |||
| Material: ASTM A420 | |||
| ASTM A420 Grade WPL3 | ASTM A420 Grade WPL6 | ASTM A420 Grade WPL9 | |
| Material: ASMT A815 | |||
| ASTM A815 Grade WP27 | ASTM A815 Grade CR27 | S44627 | |
| ASTM A815 Grade WP33 | ASTM A815 Grade CR33 | S44626 | |
| ASTM A815 Grade WP429 | ASTM A815 Grade CR429 | S42900 | |
| ASTM A815 Grade WP430 | ASTM A815 Grade CR430 | S43000 | |
| ASTM A815 Grade WP430Ti | ASTM A815 Grade CR430Ti | S43036 | |
| ASTM A815 Grade WP446 | ASTM A815 Grade CR446 | S44600 | |
| ASTM A815 Grade WPS31803 | ASTM A815 Grade CRS31803 | S31803 | |
| ASTM A815 Grade WPS32101 | ASTM A815 Grade CRS32101 | S32101 | |
| ASTM A815 Grade WPS32750 | ASTM A815 Grade CRS32750 | S32750 | |
| ASTM A815 Grade WPS32950 | ASTM A815 Grade CRS32950 | S32950 | |
| ASTM A815 Grade WPS32760 | ASTM A815 Grade CRS32760 | S32760 | |
| ASTM A815 Grade WPS39274 | ASTM A815 Grade CRS39274 | S39274 | |
| ASTM A815 Grade WPS32550 | ASTM A815 Grade CRS32550 | S32550 | |
| ASTM A815 Grade WPS32205 | ASTM A815 Grade CRS32205 | S32205 | |
| ASTM A815 Grade WP410 | ASTM A815 Grade CR410 | S41000 | |
| ASTM A815 Grade WPS41008 | ASTM A815 Grade CRS41008 | S41008 | |
| ASTM A815 Grade WPS41500 | ASTM A815 Grade CRS41500 | S41500 | |
